Top-Drive Semi-Air Suspension Light for Fiat Ducato X250-X290 Vans

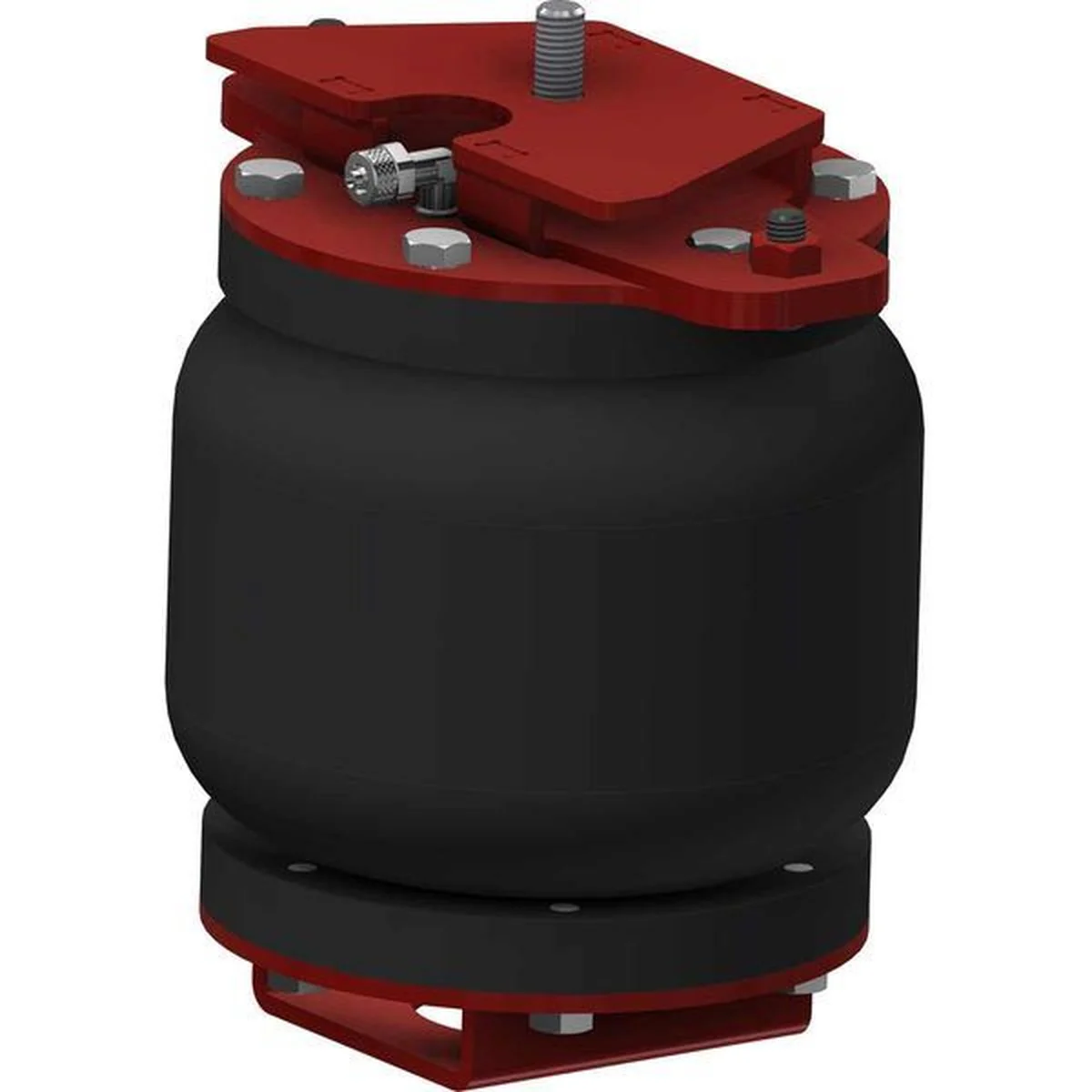

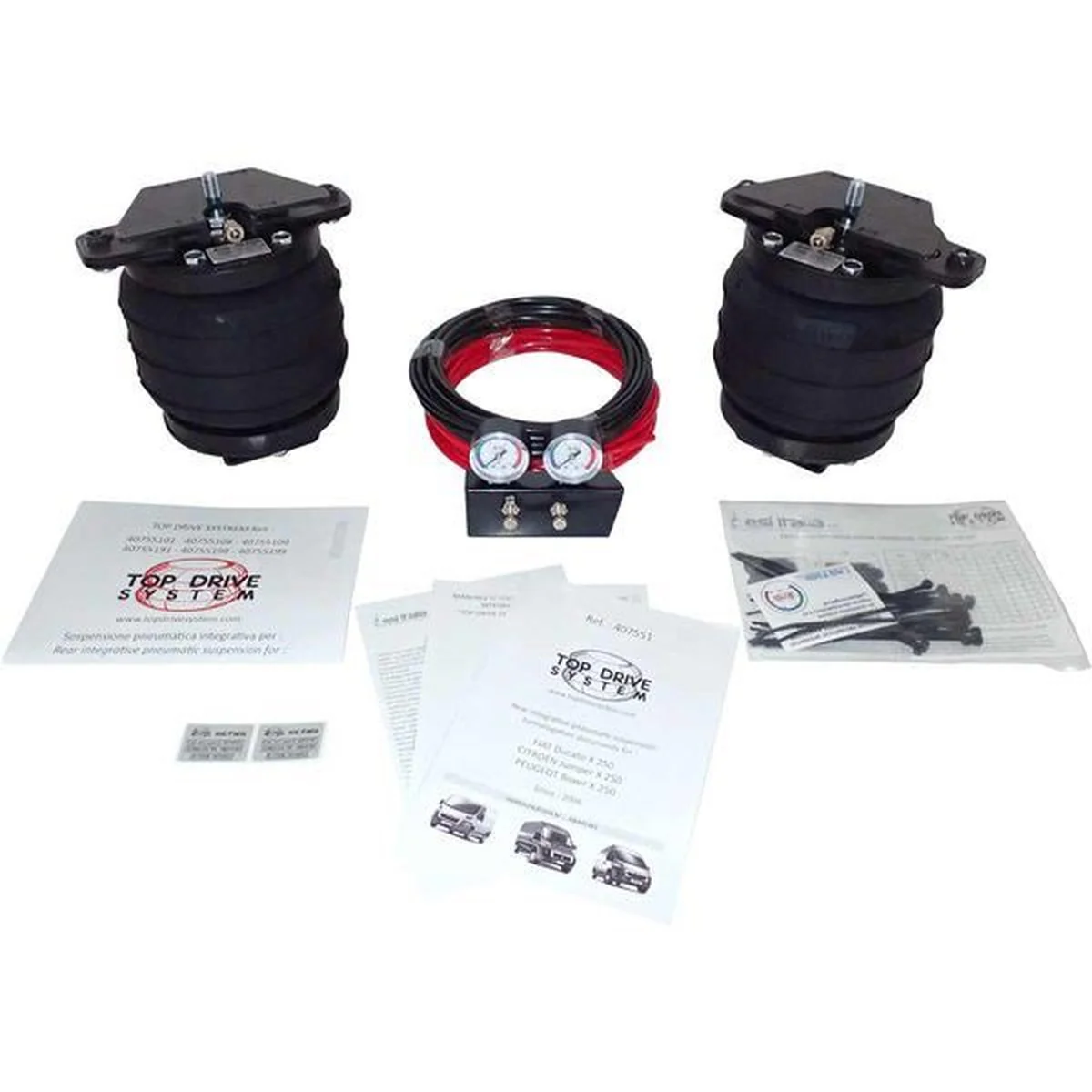

The Top-Drive System Semi-Air solution for light commercial vehicles is air springs that are applied to the rear axle, interposed between the axle and the chassis with the aim of minimising the vibrations due to the impact of the limit switch buffer, an inevitable phenomenon when the vehicle is near the load limit. Top-Drive - Light Air Suspension In some cases, only a little bit of help is required for the already sufficient load capacities of the vehicle to be enhanced. To preserve its structural integrity in sporadic cases of excessive load, Top-Drive have developed functional versions with a low cost that can offer a real Top Drive System only when needed. This makes the system almost invisible in standard working conditions. - Single Convolute Air Spring 6" - ISO 9001:2015 Certified Management System - Suitable for customers with low budget or for lightweight vehicles like vans. - Very quick to install, good for composite leaf spring. - Suitable for FIAT Ducato X250 to X290 chassis cabs. - Pre assembled air springs (left and right) - Vehicle-specific harware kit (2x locking plates, 2x M10 screws, 4x M8 round screws and 2x grommets) - Hose set (6m red pipe and 6m black pipe) - Simple inflating assembly - Reference and lot number stickers - Pressure range stickers - Mounting instructions
Dimensions: Distance between fixing hole centres: 118.5mm
Brand: Top-Drive
Height Description: 155mm
Temperature Range: -35°C to +70°C
Diameter Description: OD: 155mm
Country of Origin: Italy
